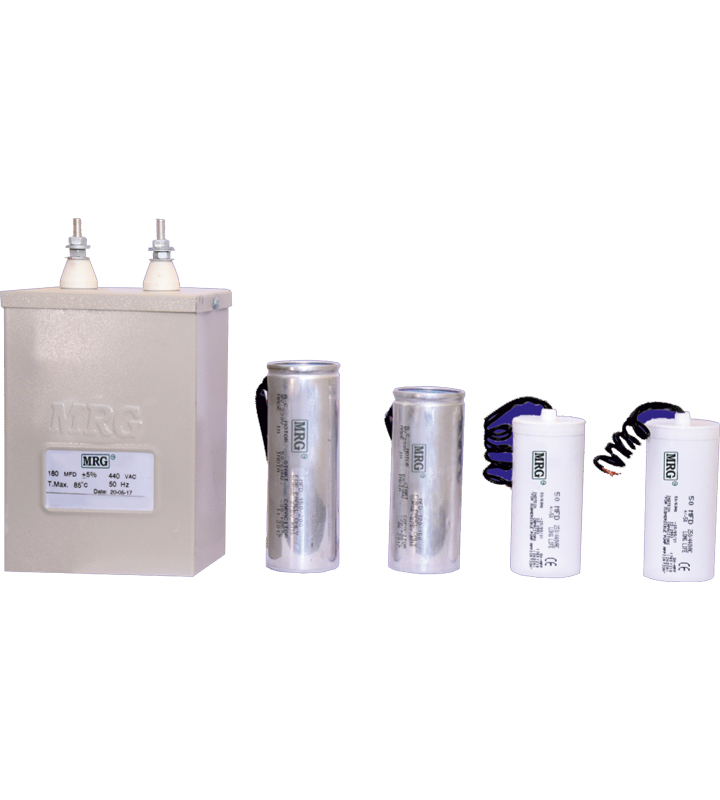

MRG Running and Starting Capacitor
| RUNNING CAPACITOR : | 2.5 Mfd. to 100 Mfd |
| BOX TYPE RUNNING CAPACITOR : | 50 Mfd. to 252 Mfd. |
| STARTING CAPACITOR : | 40-60 Mfd. to 250-300 Mfd |
These Capacitor are Specially Designed For Used in Fans, Motors, Cooler, Exhaust Fan & Submersible Panels.
Salient Features:
Low loss, low Tan & self healing type 100% impergnated with non toxicoil / compound. Hermetically sealed, Excellent Thermal heat Conductionby oil & metal / container Robust
compact lowest calorific construction. Heavy edge Al Zinc Alloy MPPSuperior raw materia
High Velocity metal and spray for heavy transient current. ElectroplatedTreminals to prevent rusting, Provided with Indictor coil to control the inrush current for higher rating. Excellentpowder coated finish. Tested on latest technology equipement.
TECHNICAL SPECIFICATIONS
| Capacitor Type | MPP OIL & Dry |
| Marking | Fan, Motor Capacitor |
| Rated Output | 2.5 MFD To 100MFD |
| Tolerance | +- 5% +-10% |
| Rated Voltage | 250,440V AC |
| Temp. category | -10/085/21 |
| Phase & Connection | single /2T |
| Duty Cycle | Continues |
| Insulation Level | >100 mgha ohms /2.0/-kv |
| Loss angle at RV | <0.2% |
| Discharge Device | Applicable / N.A |
| Dielectric | M.P.P (SH) |
| Impregnated | N. PCB |
